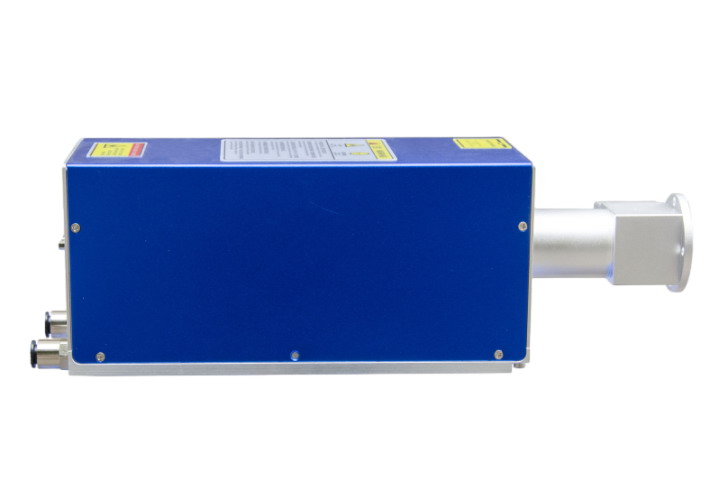

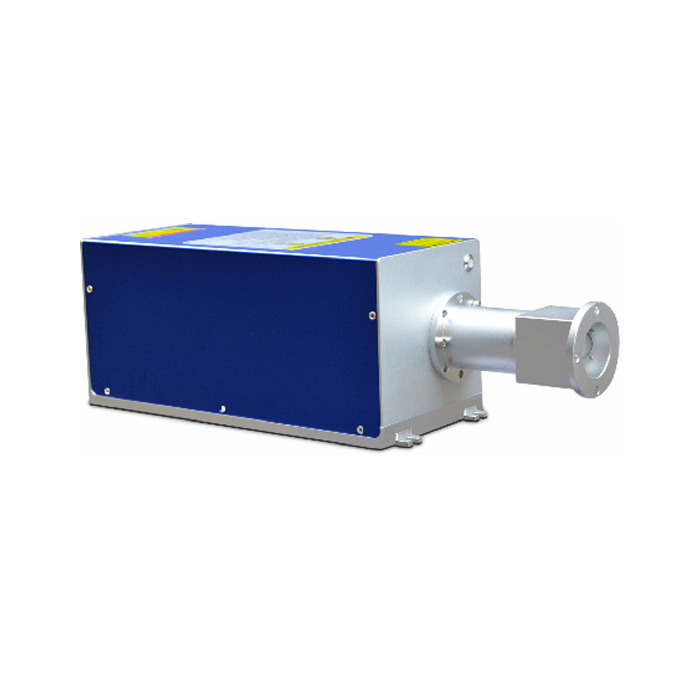

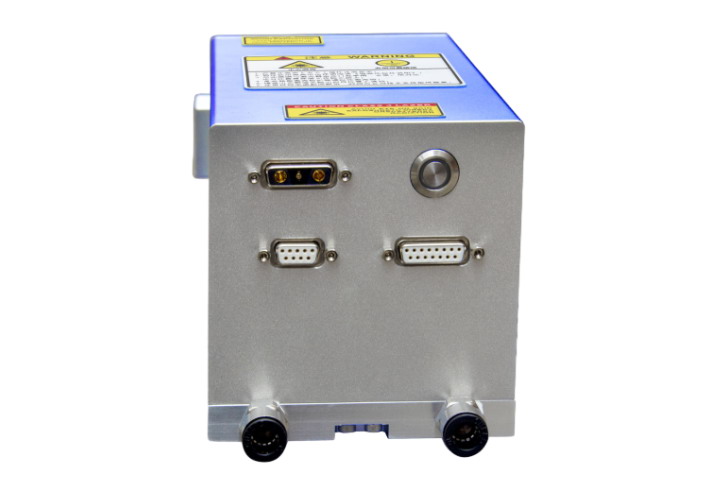

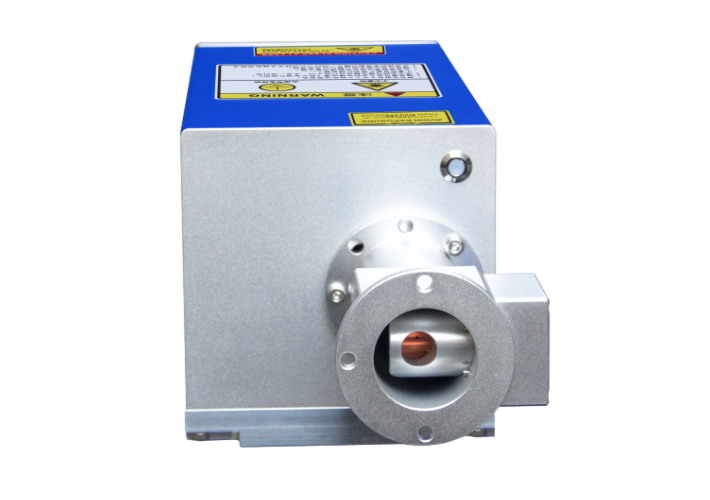

TOOL Series Water Cooled 3W 5W UV Laser Source

Model
TOOL-LW-03NUV
Brand
GainLaser
Applications
Galvanometer Scanners
Description
Lots of stock for sell, Contact us to get price. We can sell one or more with wholesale price.
Reference #
3002
Price
GET A QUOTE
INQUIRE NOW
Technical Specifications
Model TOOL-LW-03NUV TOOL-LW-05NUV TOOL-LW-07NUV
Wavelength DPSS Ultraviolet (UV)
Cooling Method Water cooled
Output Power >3W@40kHz >5W@40kHz >7W@40kHz
Max Pulse Energy 0.1mJ@30KHz 0.17mJ@30KHz 0.23mJ@30KHz
Pulse Repetitive Frequency 30-150KHz 30-150KHz 30-150KHz
Pulse Duration ＜15ns@40KHz ＜15ns@40KHz ＜15ns@40KHz
Average Power Stability ＜3% ＜3% ＜3%
Beam Quality M2＜1.2 M2＜1.2 M2＜1.2
Polarization Ratio ＞100:1 Horizontal ＞100:1 Horizontal ＞100:1 Horizontal
Laser Spot Roundness ＞90% ＞90% ＞90%
Operative Ambient Air Temp 7°-35°C / 45°-95°F
Input Voltage 12V 12V 12V
Communication Protocol RS232 RS232 RS232
Dimensions 265*139*121mm
Weight 2.5KG
