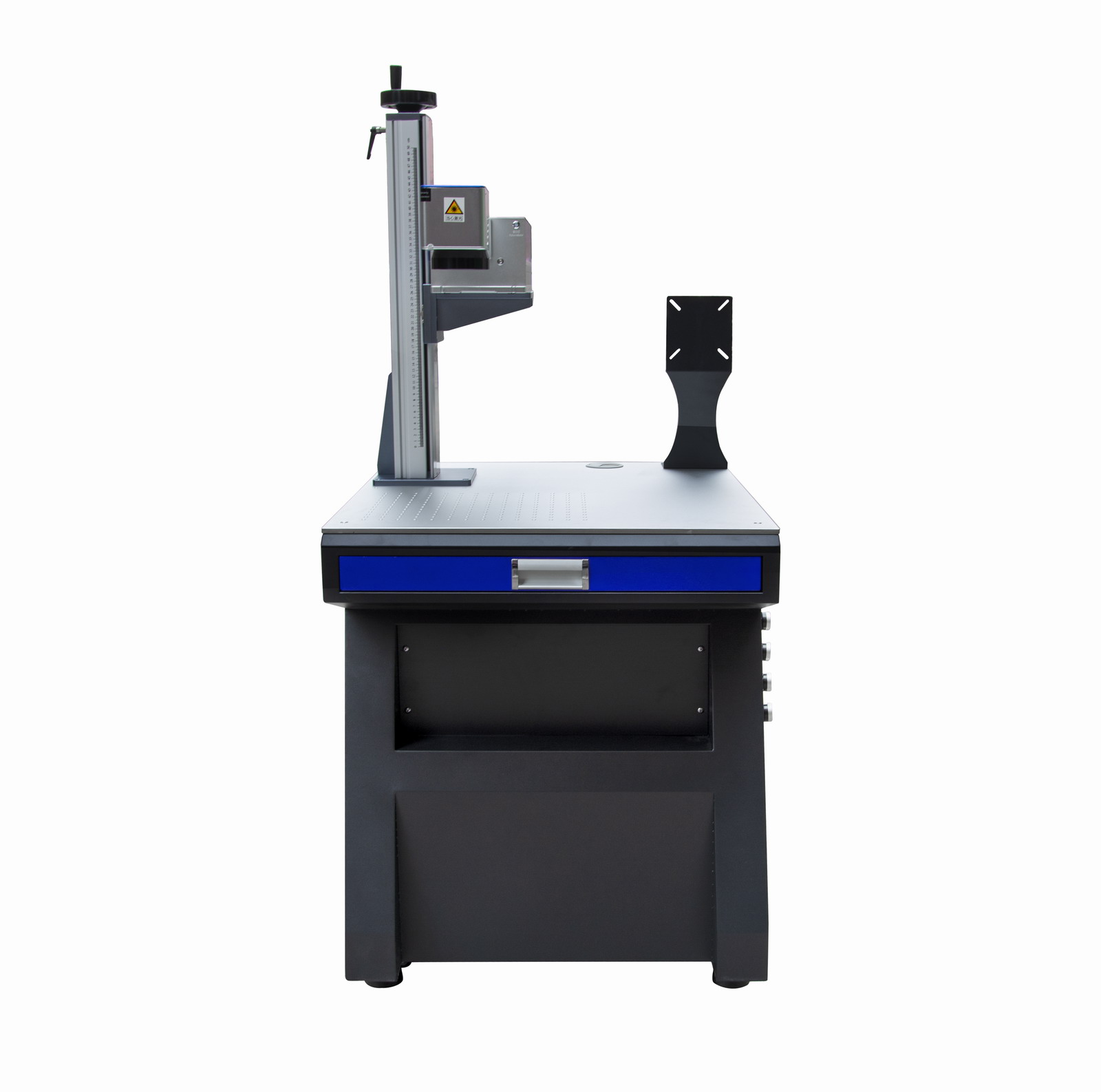

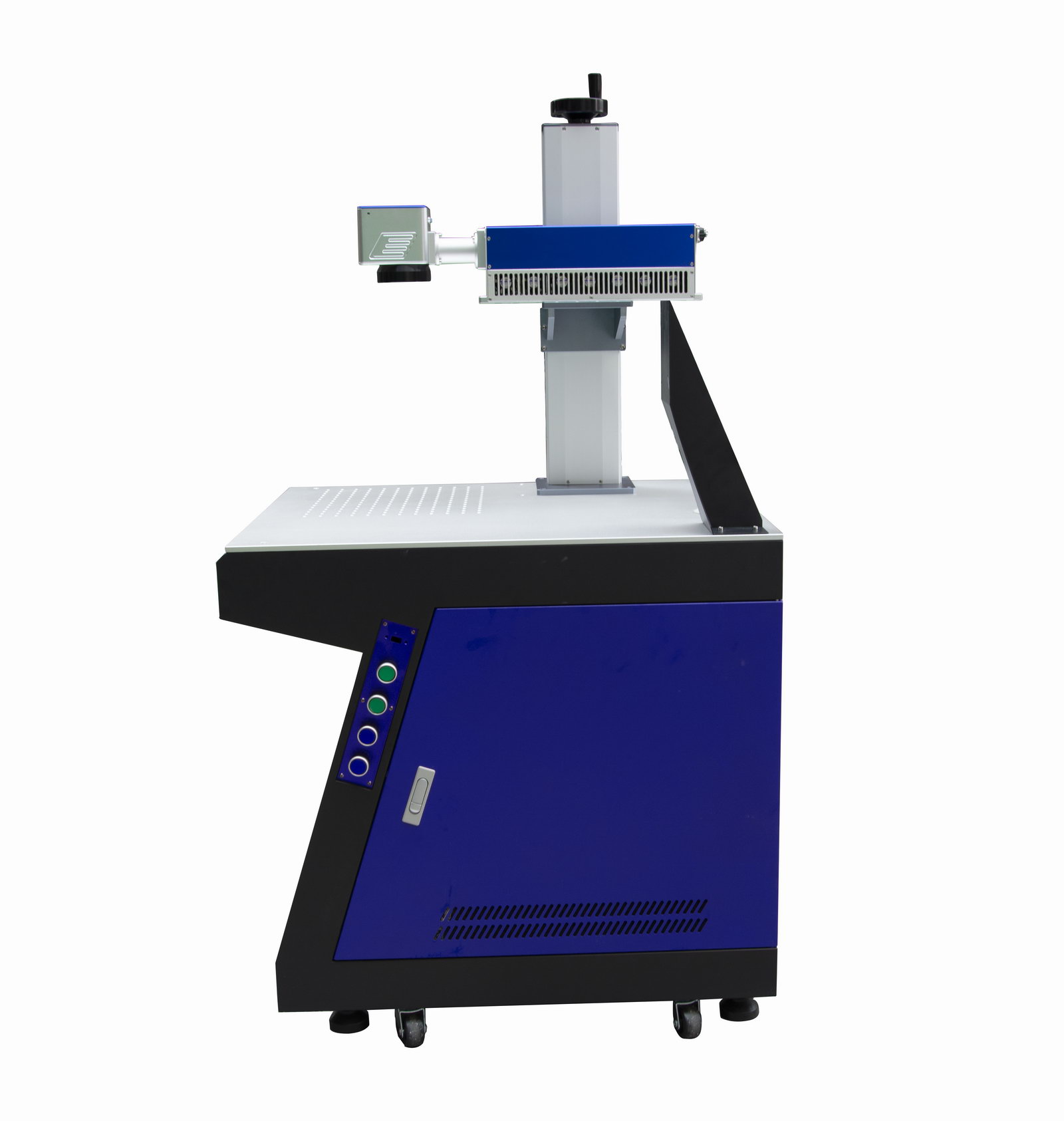

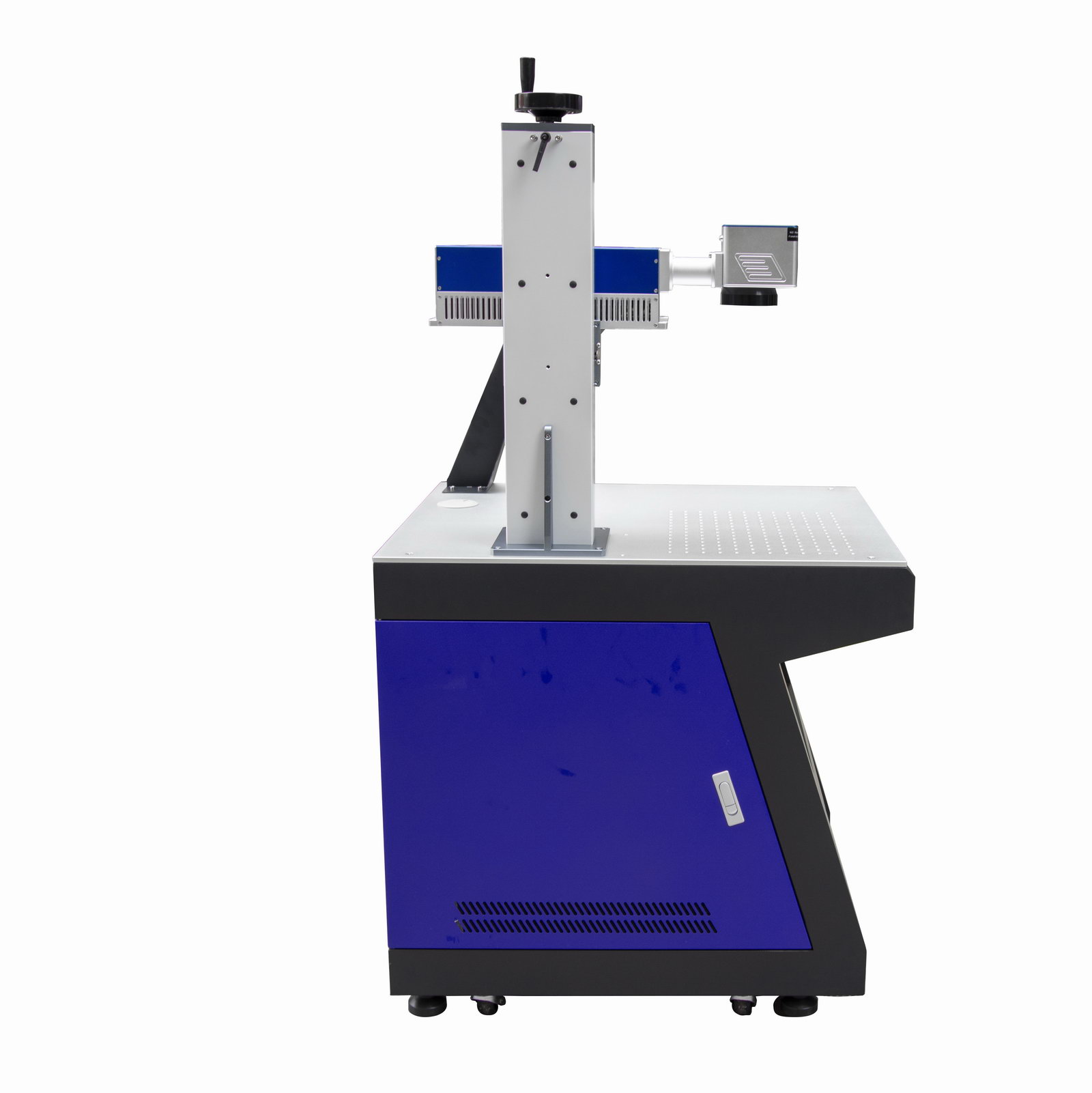

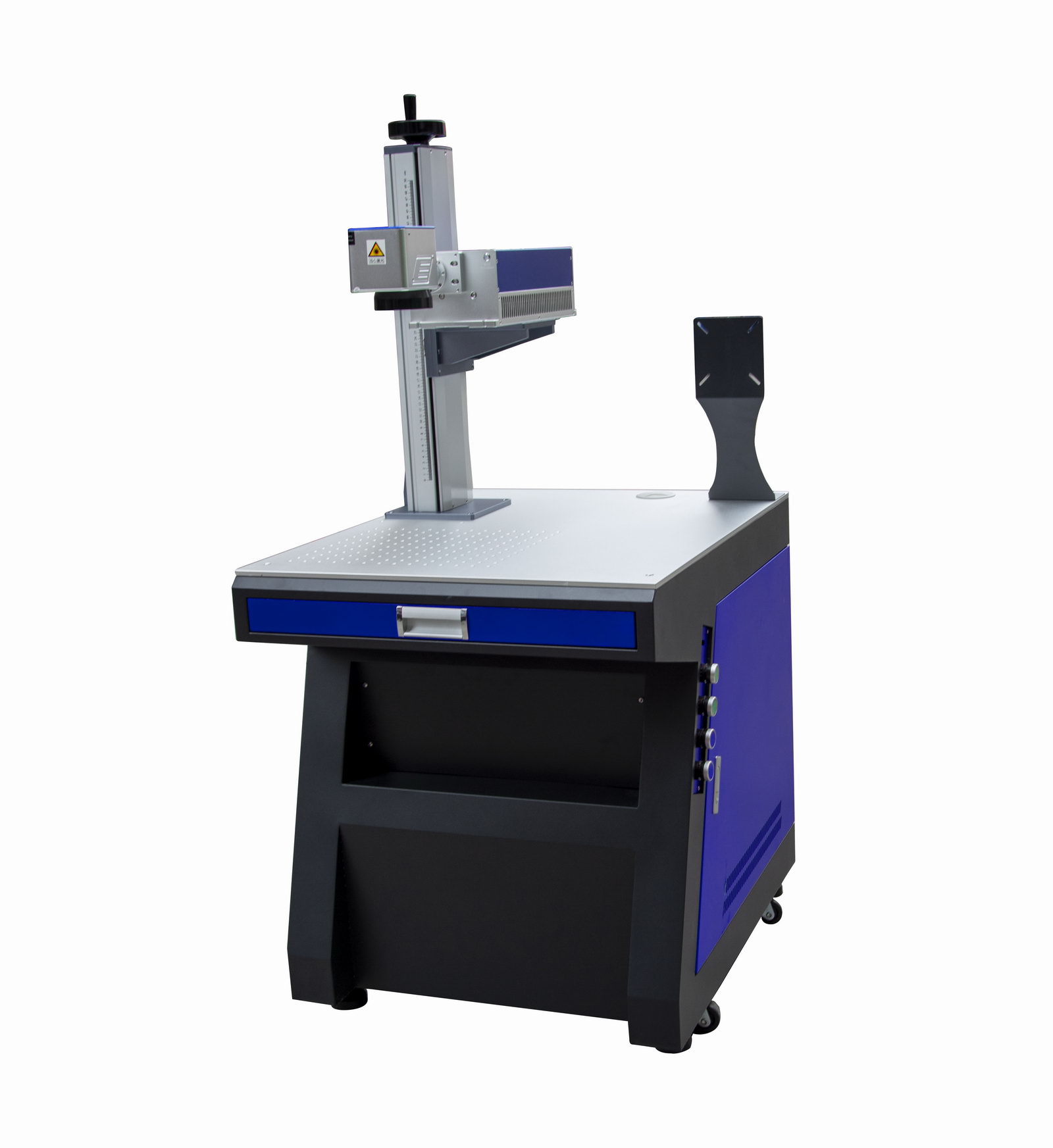

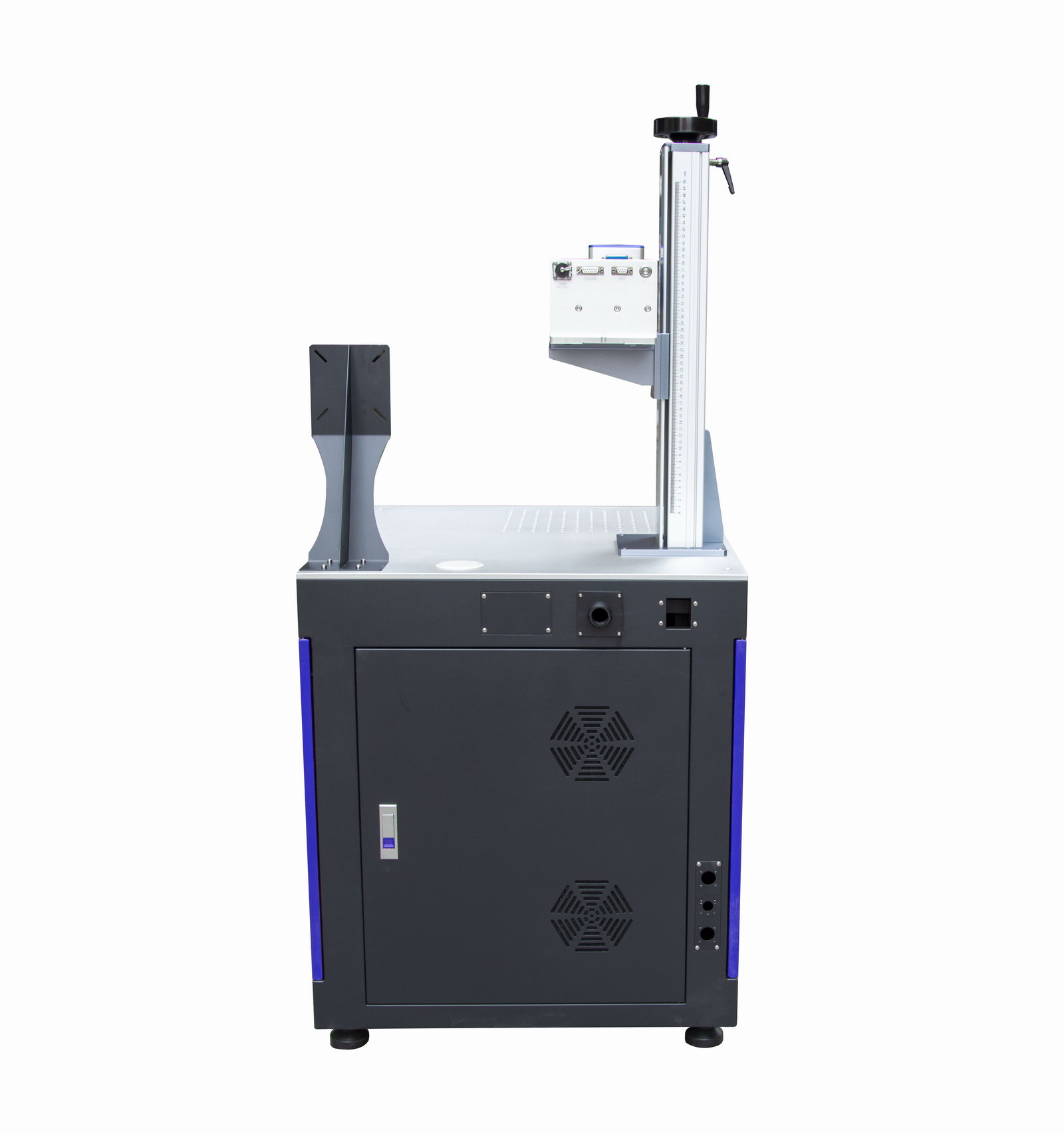

Green Laser Marking Machine Air Cooled

Model
GL-M-GR07
Brand
GainLaser
Applications
Laser Marking & Engraving
Description
Lots of stock for sell, Contact us to get price. We can sell one or more with wholesale price.
Reference #
1002
Price
GET A QUOTE
INQUIRE NOW
Technical Specifications
Model GL-M-GR07 GL-M-GR12
Laser Type DPSS Green laser
Wavelength 532 nm
Average Power >7W@50kHz >12W@50kHz
Pulse Duration <20ns@50kHz <20ns@50kHz
Beam Quality M2<1.2
Frequency Range 1-150kHz
Spot Diameter 0.7+-0.1mm 0.8+-0.1mm
Marking Field / Lens Size 110*110mm, 175*175mm etc. optional
Marking Speed <=7000mm/s
Cooling Air cooling / Water cooling
Electricity Demand 220V(110V)/50Hz(60Hz)
Operative Ambient Air Temp 7°-35°C / 45°-95°F
Dimensions L648*W800*H1502 MM
Weight 120KG
Warranty 1 Year
Catalog pdf Download
