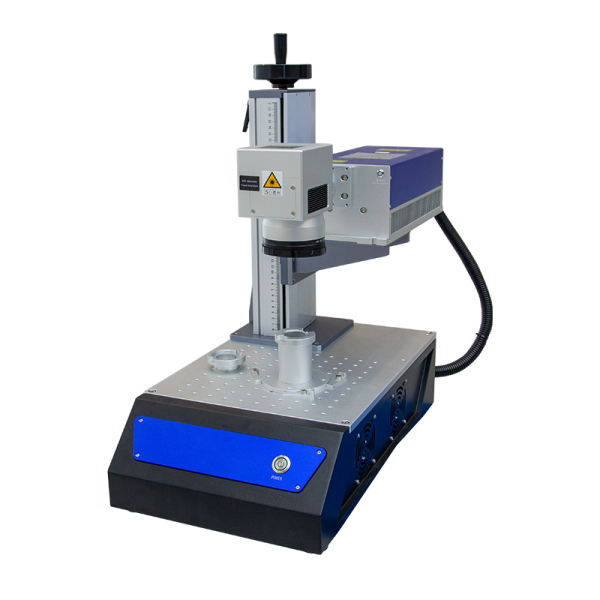

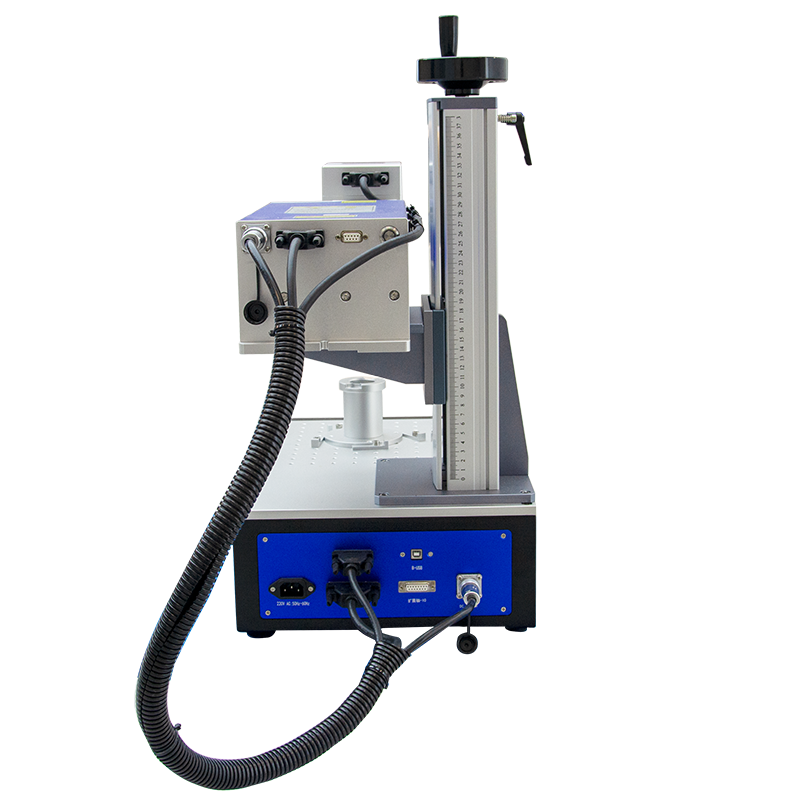

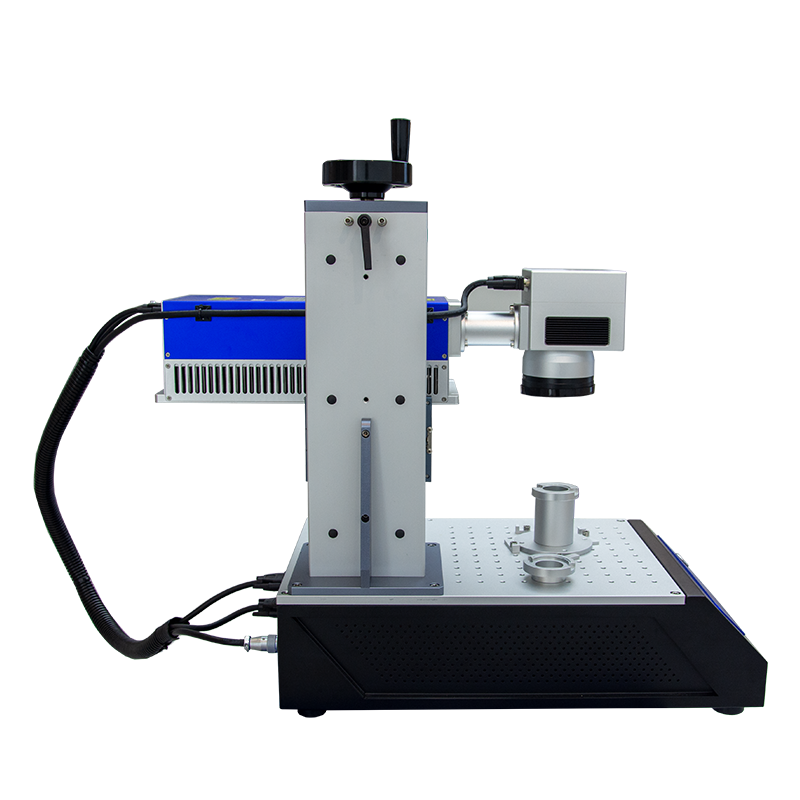

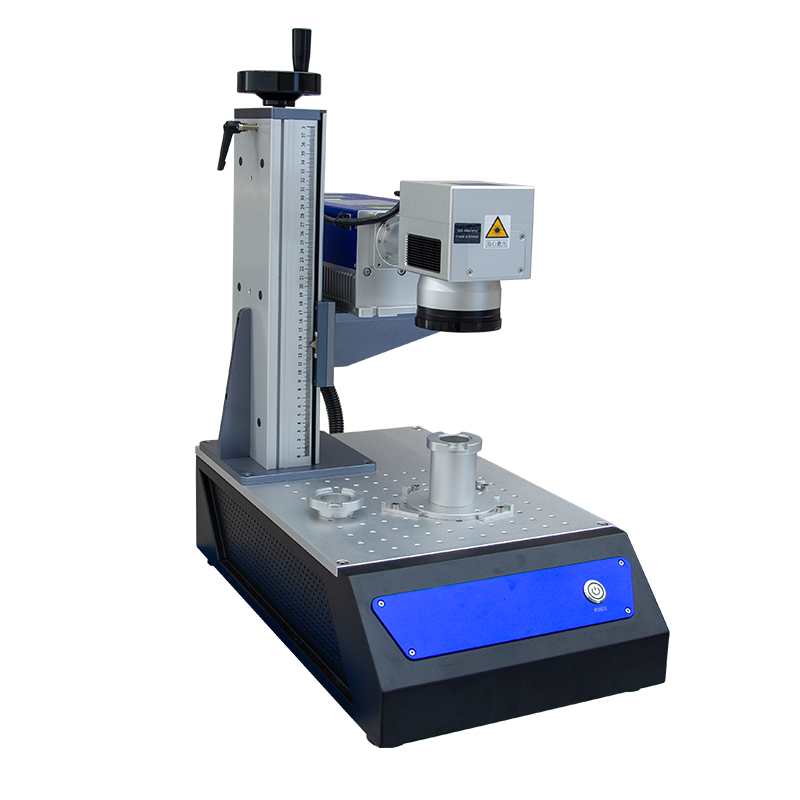

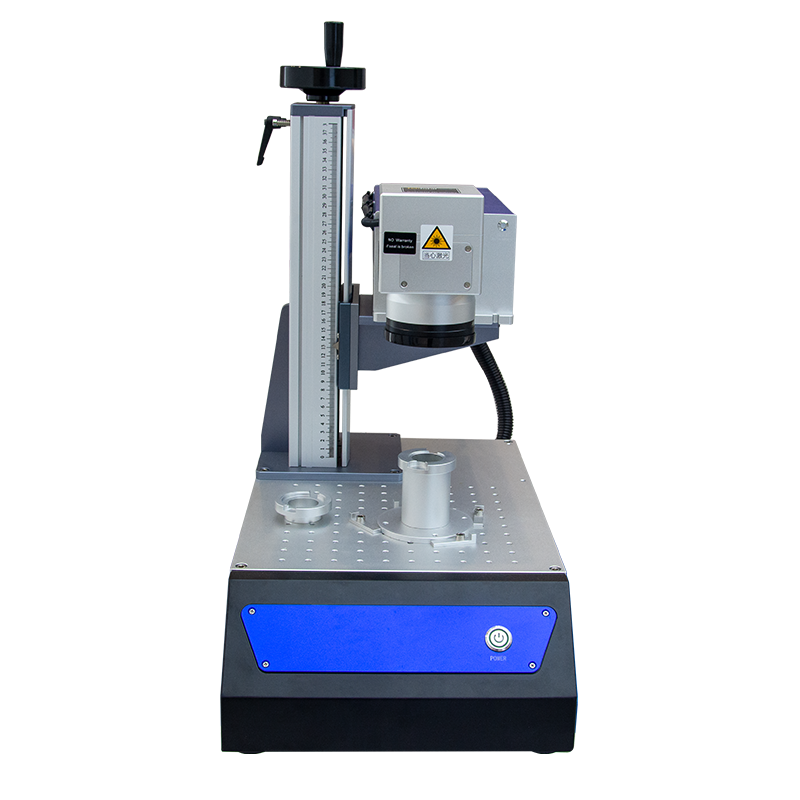

Full Color Gobo Glass Machine

Model
GL-M-UVFC03
Brand
GainLaser
Applications
Laser Marking & Engraving
Description
Lots of stock for sell, Contact us to get price. We can sell one or more with wholesale price.
Reference #
1001
Price
GET A QUOTE
INQUIRE NOW
Technical Specifications
Model GL-M-UVFC03 GL-M-UVFC05
Laser Type DPSS Ultraviolet (UV)
Wavelength 355 nm
Average Power >3W@30kHz >5W@40kHz
Pulse Duration <12ns@30kHz <18ns@30kHz
Beam Quality M2<1.2
Frequency Range 1-150kHz
Minimum Line Width 0.01mm
Spot Diameter 0.7+-0.1mm 0.8+-0.1mm
Marking Field / Lens Size 110*110mm, 175*175mm etc. optional
Marking Speed <=7000mm/s
Cooling Air cooling / Water cooling
Electricity Demand 220V(110V)/50Hz(60Hz)
Operative Ambient Air Temp 7°-35°C / 45°-95°F
Dimensions L670*W320*H670mm
Weight 35KG
Warranty 1 Year
Catalog pdf Download
Catalogue - UV Laser Marking Machines & DPSS Lasers Catalogue - High Speed Gavanometer Scanners

Machine features：

  1. UV laser narrow pulse width ≤ 12ns@30KHz, ensuring the highest marking accuracy.
  2. 50*50mm high quality F-theta lens, ensuring the highest marking accuracy.
  3. High repetition accuracy galvo scanner to ensure perfect matching of multi-colour patterned glass.
  4. Precise and clear text and patterns, easy and simple to operate.
  5. Small machine size, 670*L*320*H670mm, weight only 34KG.

The Applications of GL-FC Series Full color Gobo , Glass UV Laser Marking Machine

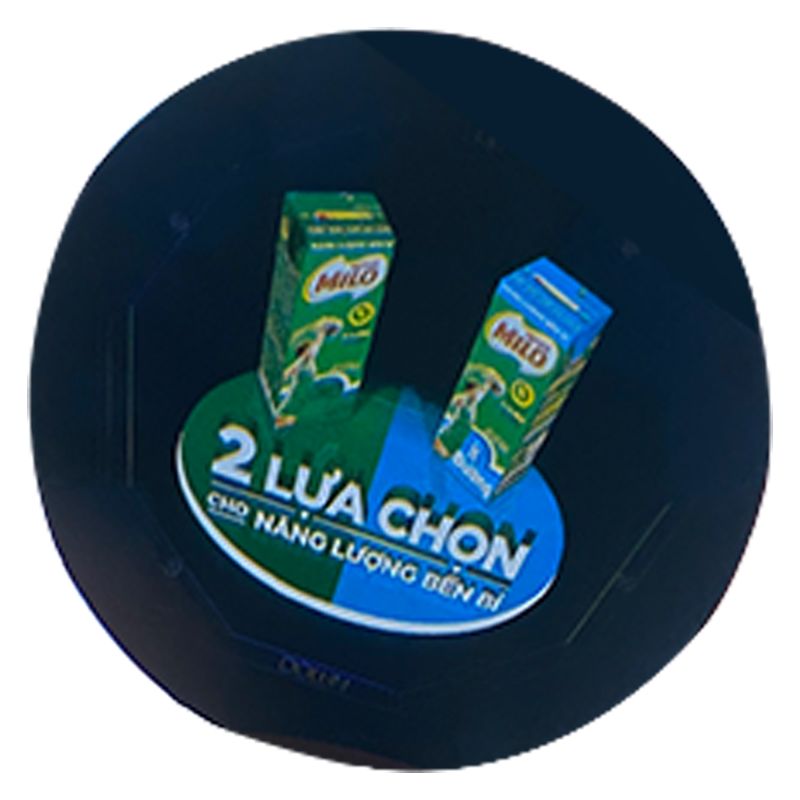

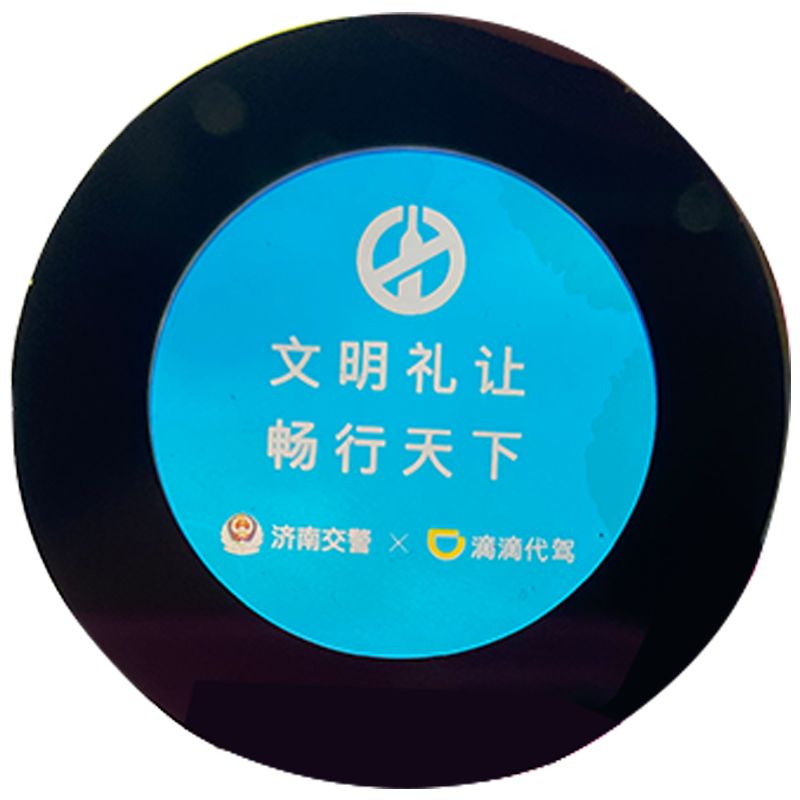

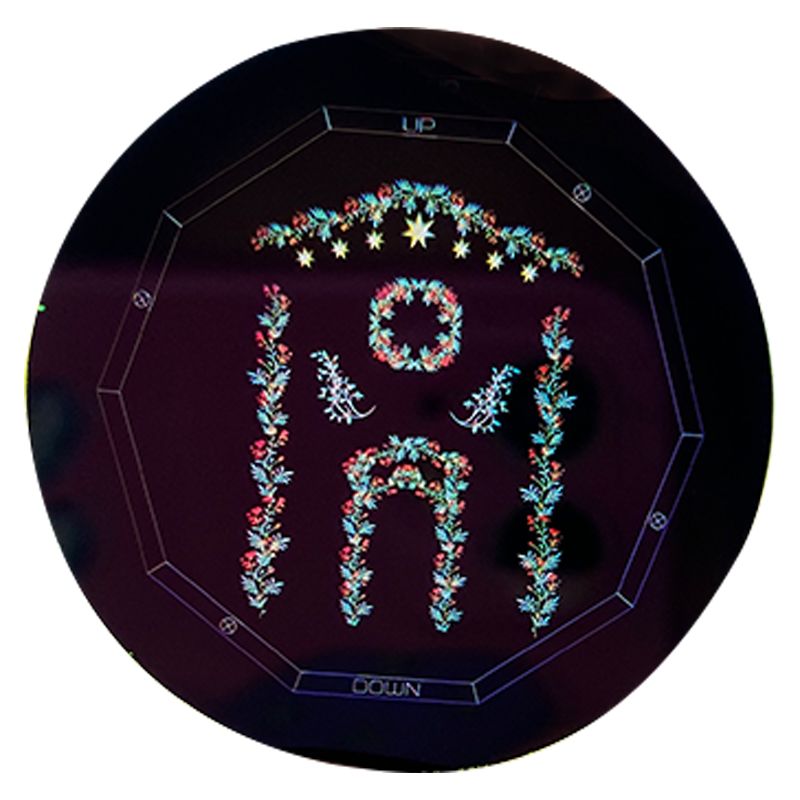

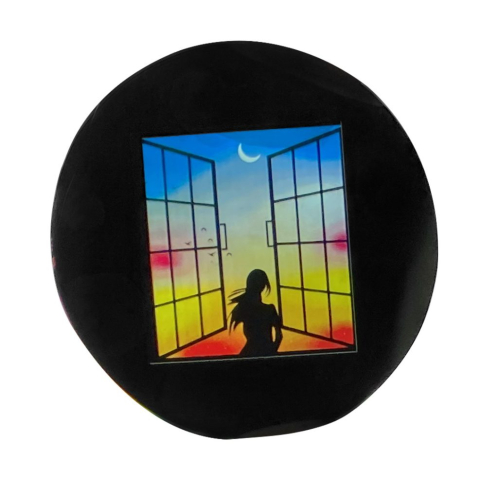

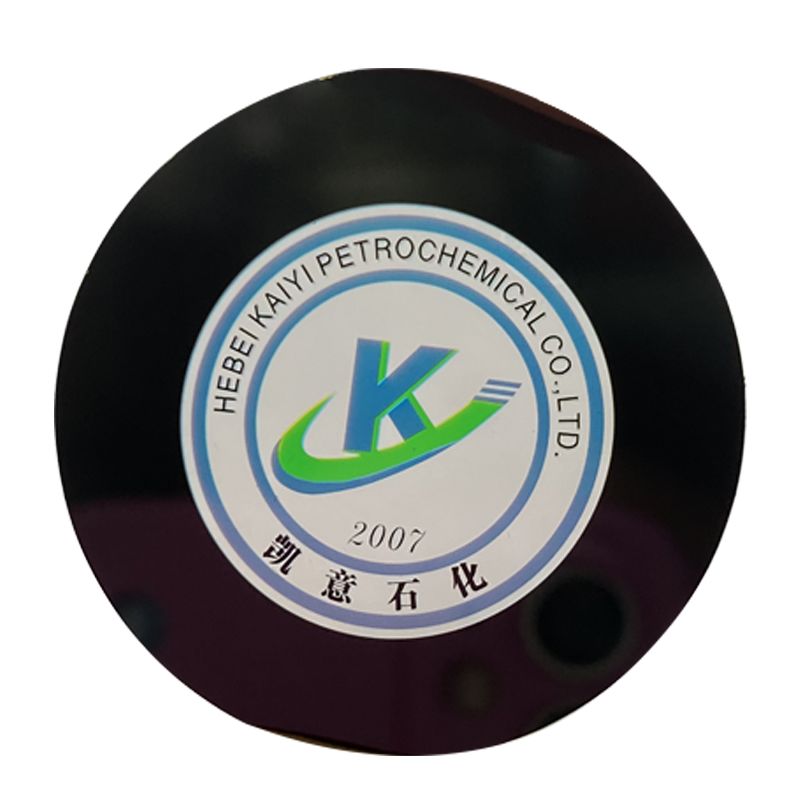

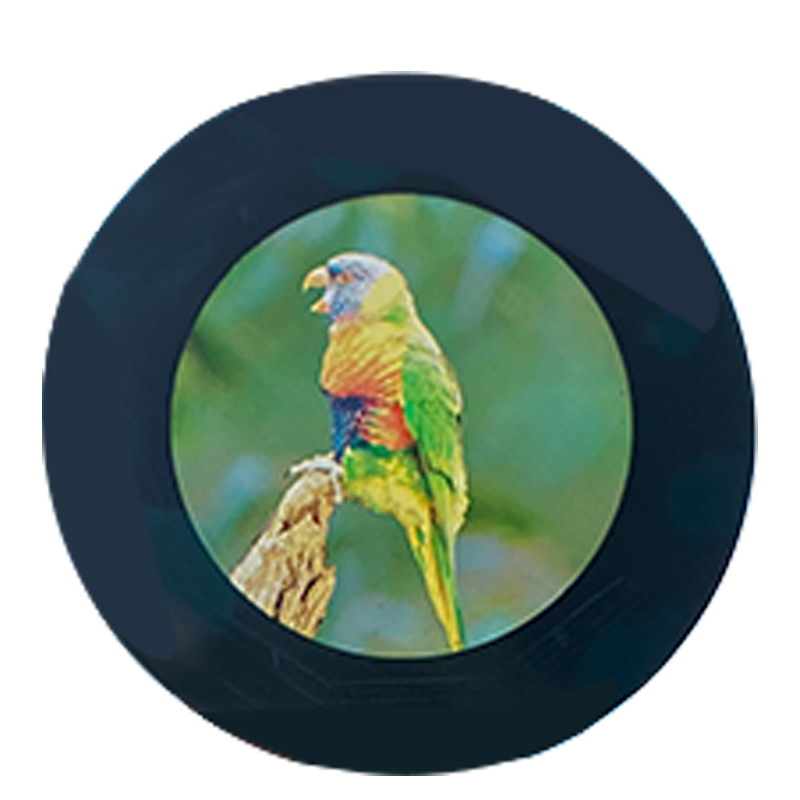

Full Color Gobo Glass Samples:
