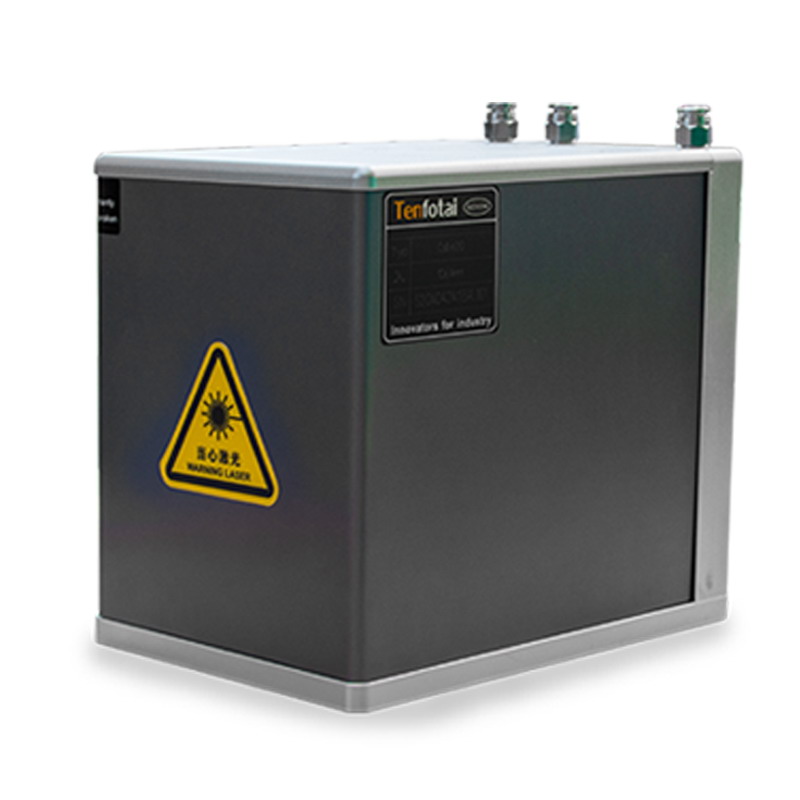

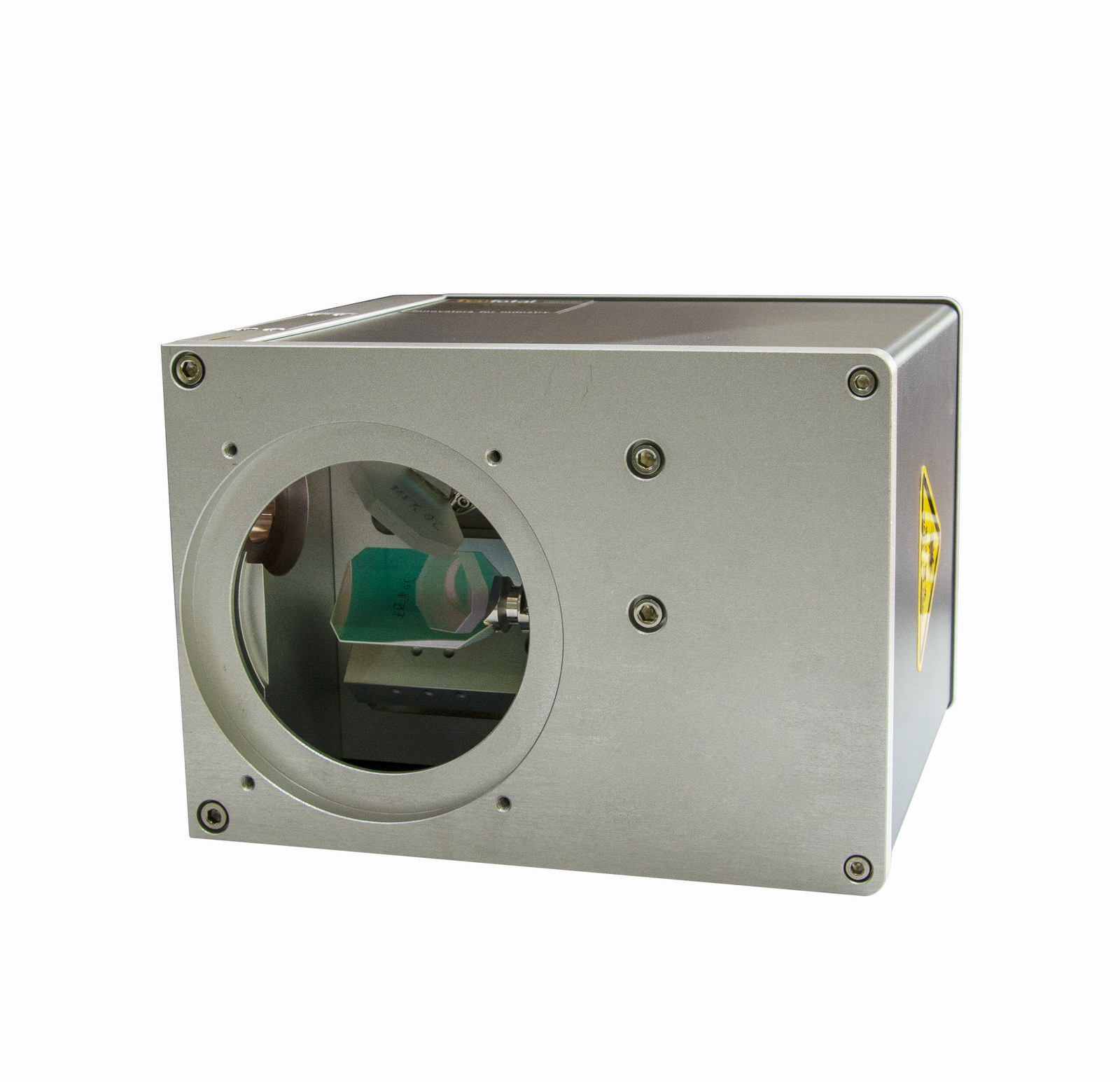

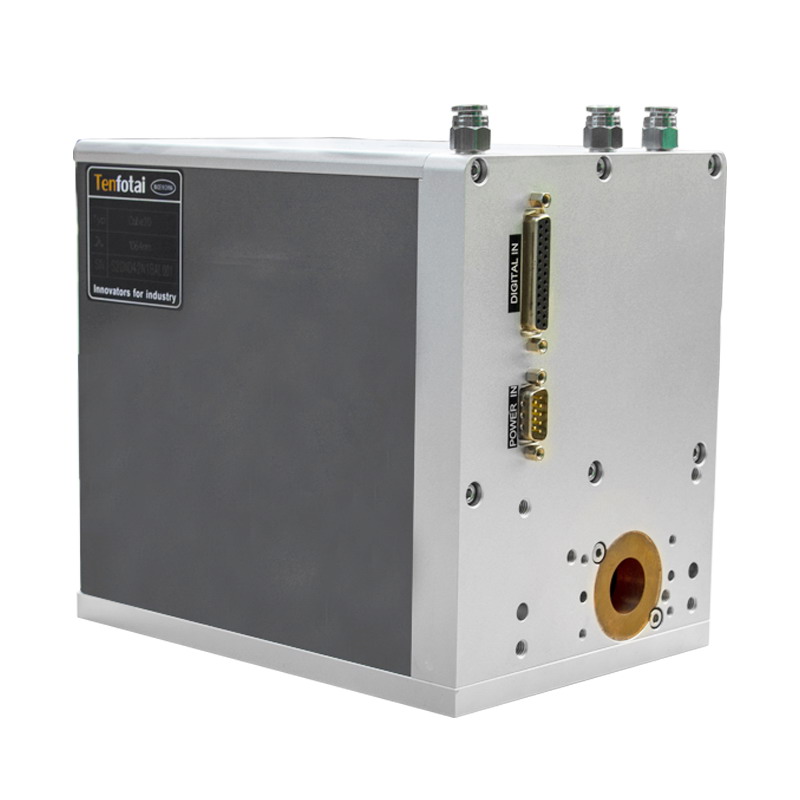

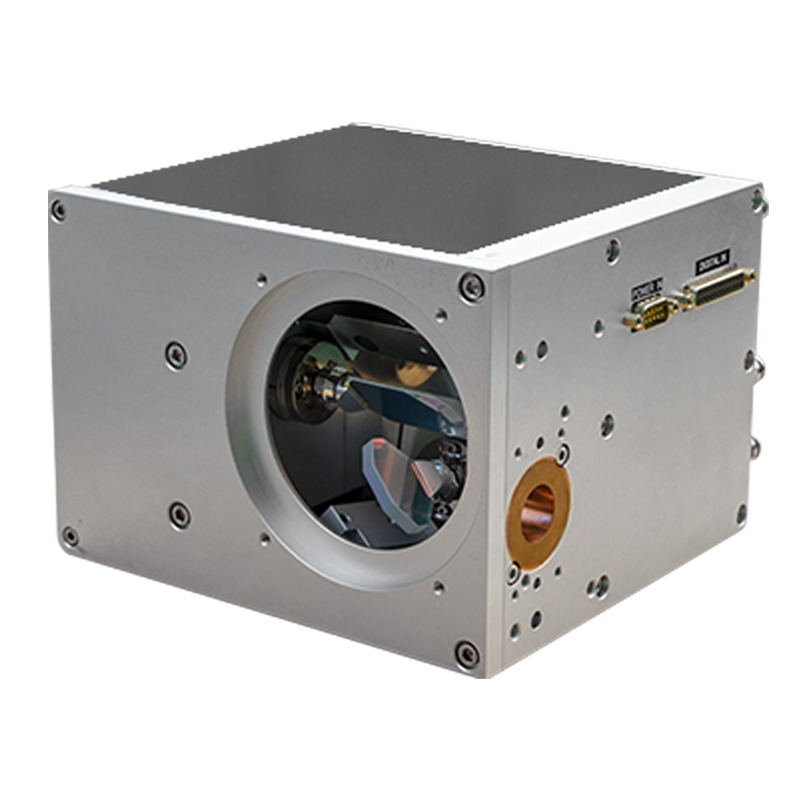

20mm Galvanometer Scanners Fly III

Model
TFT-III-20MM
Brand
GainLaser
Applications
Galvanometer Scanners
Description
Lots of stock for sell, Contact us for good price.
Reference #
2002
Price
GET A QUOTE
INQUIRE NOW
Technical Specifications
Aperture 20mm
Wavelength range 355 nm/532 nm/1064 nm/10600 nm
Typical scan angle ±20 rad
Tracking error 0.3 ms
Step response time 1% of full scale 0.49 ms
10% of full scale 2.4 ms
Writing speed High writing quality 200 cps
Good writing quality 310 cps
8-h-drift Offset < 150 µrad
Gain < 120 ppm
Temperature drift Offset < 30 µrad/K
Gain < 30 ppm/K
Marking speed 1.2 m/s
Positioning speed 6.0 m/s
Repeatability 2 µrad
Positioning resolution 16 bit
Nonlinearity < 1 mrad / 44°
Power requirements ±15 V DC, max. 5A
Control interface XY2-100
Operating temperature 25 °C ± 10 °C
Weight 6.68 KG
