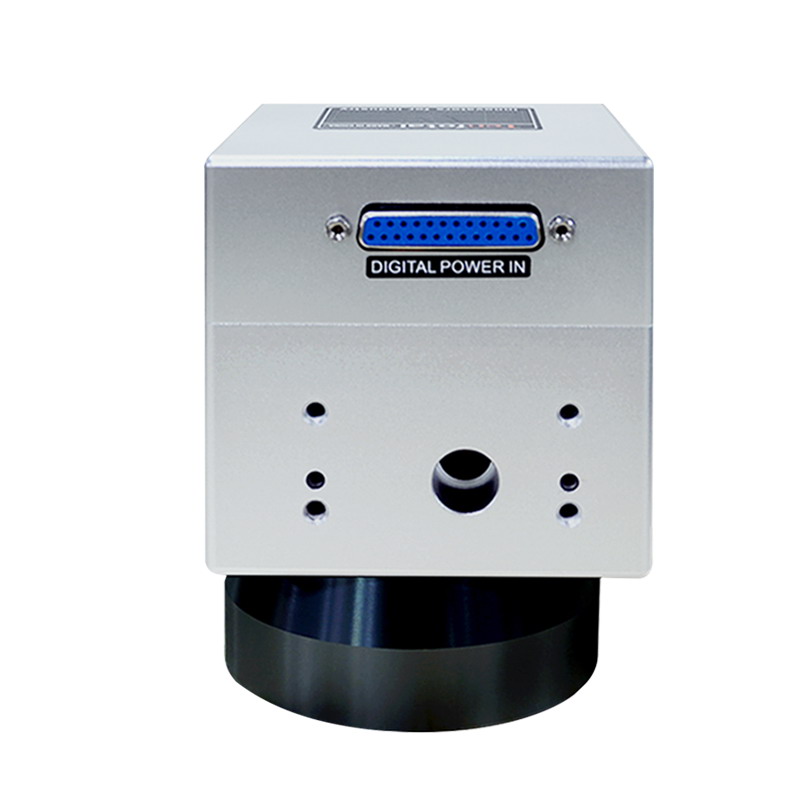

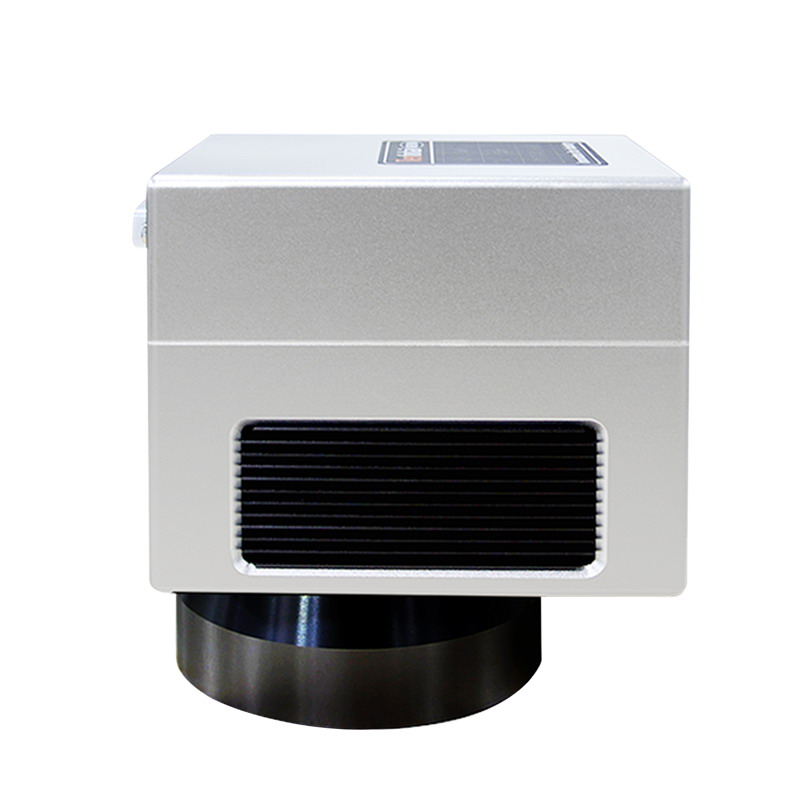

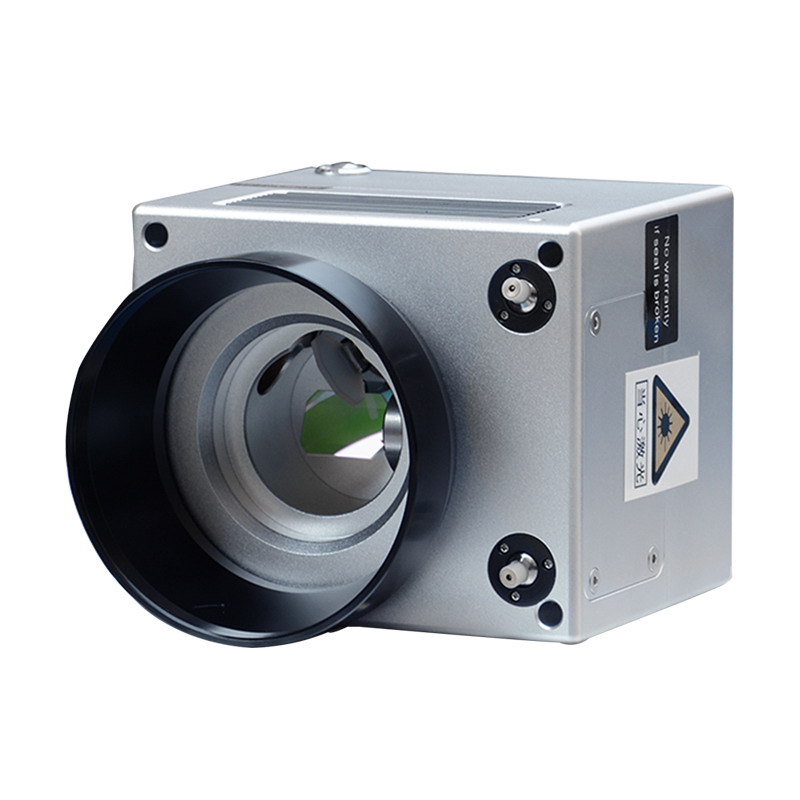

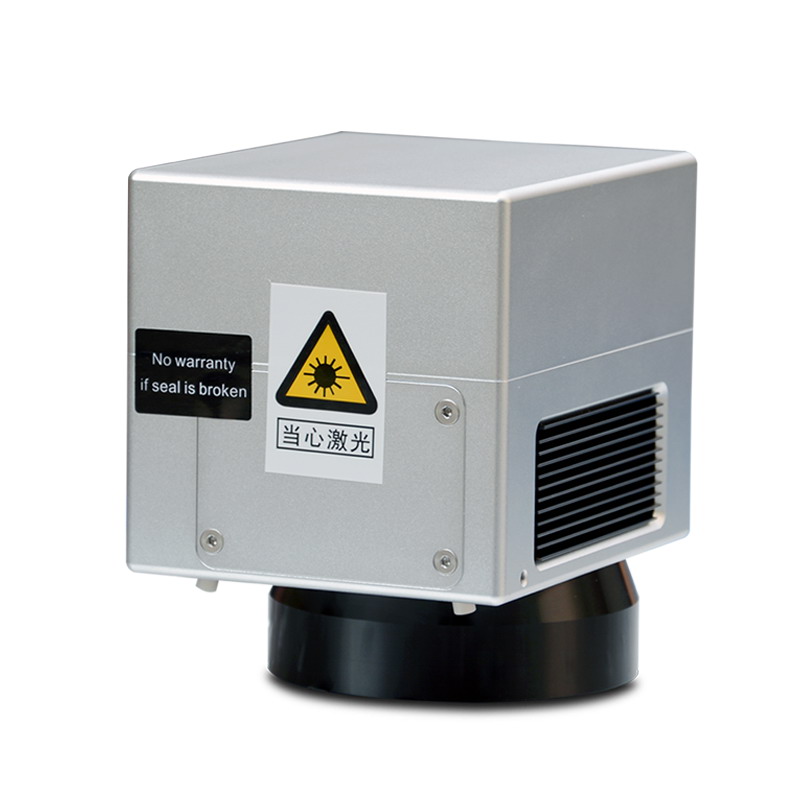

10mm Galvanometer Scanners Fly II

Model
TFT-II-10MM
Brand
GainLaser
Applications
Laser Marking & Engraving
Description
Lots of stock for sell, Contact us to get price. We can sell one or more with wholesale price.
Reference #
2002
Price
GET A QUOTE
INQUIRE NOW
Technical Specifications
Aperture 10 mm
Wavelength range 355 nm/532 nm/1064 nm/10600 nm
Typical scan angle ±0.35 rad
Tracking error 0.15 ms
Step response time 1% of full scale 0.32 ms
10% of full scale 0.75 ms
Writing speed High writing quality 690 cps
Good writing quality 780 cps
8-h-drift Offset < 150 µrad
Gain < 250 ppm
Temperature drift Offset < 50 µrad/K
Gain < 150 ppm/K
Marking speed 3.5 m/s
Positioning speed 12.0 m/s
Repeatability 2 µrad
Positioning resolution 16 bit
Nonlinearity < 1 mrad / 44°
Power requirements ±15 V DC, max. 3A
Control interface XY2-100
Operating temperature 25 °C ± 10 °C
Weight 1.63 KG
